Section 7: Proteomic signature of SF3B1
Junyan Lu
2020-10-09
Last updated: 2021-02-10
Checks: 5 2
Knit directory: CLLproteomics_batch13/analysis/
This reproducible R Markdown analysis was created with workflowr (version 1.6.2). The Checks tab describes the reproducibility checks that were applied when the results were created. The Past versions tab lists the development history.
The R Markdown is untracked by Git. To know which version of the R Markdown file created these results, you'll want to first commit it to the Git repo. If you're still working on the analysis, you can ignore this warning. When you're finished, you can run wflow_publish to commit the R Markdown file and build the HTML.
Great job! The global environment was empty. Objects defined in the global environment can affect the analysis in your R Markdown file in unknown ways. For reproduciblity it's best to always run the code in an empty environment.
The command set.seed(20200227) was run prior to running the code in the R Markdown file. Setting a seed ensures that any results that rely on randomness, e.g. subsampling or permutations, are reproducible.
Great job! Recording the operating system, R version, and package versions is critical for reproducibility.
The following chunks had caches available:
- unnamed-chunk-5
- unnamed-chunk-6
To ensure reproducibility of the results, delete the cache directory manuscript_S7_SF3B1_cache and re-run the analysis. To have workflowr automatically delete the cache directory prior to building the file, set delete_cache = TRUE when running wflow_build() or wflow_publish().
Great job! Using relative paths to the files within your workflowr project makes it easier to run your code on other machines.
Great! You are using Git for version control. Tracking code development and connecting the code version to the results is critical for reproducibility.
The results in this page were generated with repository version 3fb50c5. See the Past versions tab to see a history of the changes made to the R Markdown and HTML files.
Note that you need to be careful to ensure that all relevant files for the analysis have been committed to Git prior to generating the results (you can use wflow_publish or wflow_git_commit). workflowr only checks the R Markdown file, but you know if there are other scripts or data files that it depends on. Below is the status of the Git repository when the results were generated:
Ignored files:
Ignored: .DS_Store
Ignored: .Rhistory
Ignored: .Rproj.user/
Ignored: analysis/.DS_Store
Ignored: analysis/.Rhistory
Ignored: analysis/manuscript_S1_Overview_cache/
Ignored: analysis/manuscript_S3_trisomy12_cache/
Ignored: analysis/manuscript_S4_trisomy19_cache/
Ignored: analysis/manuscript_S5_IGHV_cache/
Ignored: analysis/manuscript_S6_del11q_cache/
Ignored: analysis/manuscript_S7_SF3B1_cache/
Ignored: code/.DS_Store
Ignored: code/.Rhistory
Ignored: data/.DS_Store
Ignored: output/.DS_Store
Untracked files:
Untracked: analysis/.trisomy12_norm.pdf
Untracked: analysis/manuscript_S1_Overview.Rmd
Untracked: analysis/manuscript_S2_genomicAssociation.Rmd
Untracked: analysis/manuscript_S3_trisomy12.Rmd
Untracked: analysis/manuscript_S4_trisomy19.Rmd
Untracked: analysis/manuscript_S5_IGHV.Rmd
Untracked: analysis/manuscript_S6_del11q.Rmd
Untracked: analysis/manuscript_S7_SF3B1.Rmd
Untracked: analysis/manuscript_S8_drugResponse_Outcomes.Rmd
Untracked: analysis/manuscript_S9_STAT2.Rmd
Untracked: analysis/test.pdf
Untracked: code/utils.R
Untracked: data/Fig1A.png
Untracked: data/gmts/
Untracked: data/proteins_in_complexes
Untracked: data/proteomic_LUMOS_batch13.RData
Untracked: output/MSH6_splicing.svg
Untracked: output/SUGP1_splicing.svg
Untracked: output/deResList.RData
Untracked: output/deResList_timsTOF.RData
Untracked: output/dxdCLL.RData
Untracked: output/dxdCLL2.RData
Untracked: output/exprCNV.RData
Untracked: output/geneAnno.RData
Untracked: output/splicingResults.RData
Unstaged changes:
Modified: analysis/_site.yml
Deleted: analysis/analysisSF3B1.Rmd
Deleted: analysis/comparePlatforms.Rmd
Deleted: analysis/compareProteomicsRNAseq.Rmd
Deleted: analysis/correlateCLLPD.Rmd
Deleted: analysis/correlateGenomic.Rmd
Deleted: analysis/correlateGenomic_removePC.Rmd
Deleted: analysis/correlateMIR.Rmd
Deleted: analysis/correlateMethylationCluster.Rmd
Modified: analysis/index.Rmd
Deleted: analysis/predictOutcome.Rmd
Deleted: analysis/processProteomics_LUMOS.Rmd
Deleted: analysis/processProteomics_timsTOF.Rmd
Deleted: analysis/qualityControl_LUMOS.Rmd
Deleted: analysis/qualityControl_timsTOF.Rmd
Note that any generated files, e.g. HTML, png, CSS, etc., are not included in this status report because it is ok for generated content to have uncommitted changes.
There are no past versions. Publish this analysis with wflow_publish() to start tracking its development.
Load packages and datasets
library(limma)
library(DESeq2)
library(proDA)
library(cowplot)
library(pheatmap)
library(ggbeeswarm)
library(SummarizedExperiment)
library(tidyverse)
#load datasets
load("../../var/patmeta_200522.RData")
load("~/CLLproject_jlu/var/ddsrna_180717.RData")
load("../data/proteomic_LUMOS_batch13.RData")
load("../output/deResList.RData") #precalculated differential expression
#protCLL <- protCLL[rowData(protCLL)$uniqueMap,]
source("../code/utils.R")
knitr::opts_chunk$set(echo = TRUE, warning = FALSE, message = FALSE,dev = c("png","pdf"))Overview of differentially expressed proteins
A table of associations with 10% FDR
resList <- filter(resList, Gene == "SF3B1") %>%
#mutate(adj.P.Val = adj.P.global) %>% #use IHW corrected P-value
mutate(Chr = rowData(protCLL[id,])$chromosome_name)
resList %>% filter(adj.P.Val <= 0.1) %>%
select(name, Chr,logFC, P.Value, adj.P.Val) %>%
mutate_if(is.numeric, formatC, digits=2) %>%

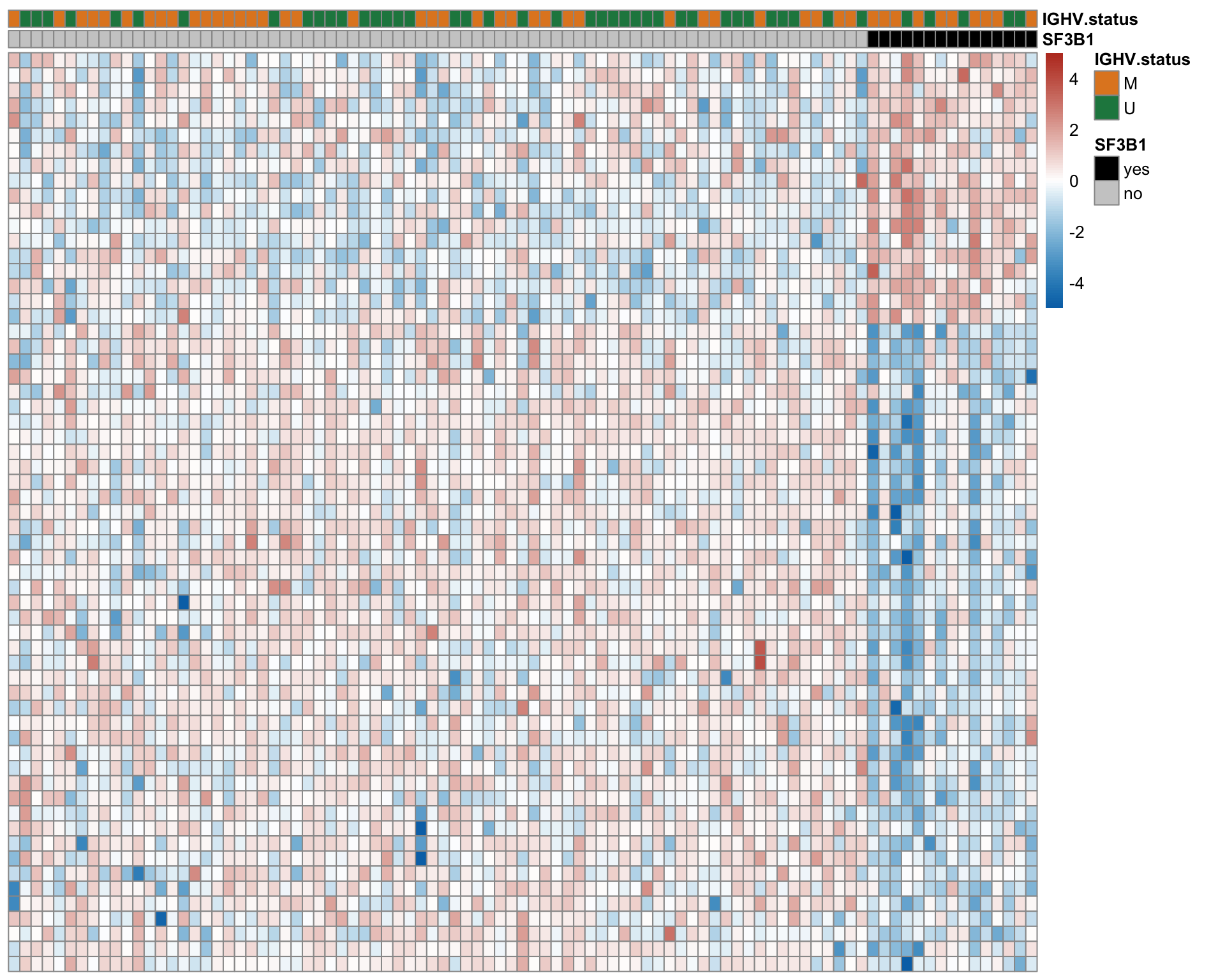

DT::datatable()Heatmap of differentially expressed proteins (10% FDR)
proList <- filter(resList, !is.na(name), adj.P.Val < 0.1) %>% distinct(name, .keep_all = TRUE) %>% pull(id)
plotMat <- assays(protCLL)[["QRILC_combat"]][proList,]
rownames(plotMat) <- rowData(protCLL[proList,])$hgnc_symbol
colAnno <- filter(patMeta, Patient.ID %in% colnames(protCLL)) %>%
select(Patient.ID, SF3B1, IGHV.status) %>%
arrange(SF3B1) %>%
data.frame() %>% column_to_rownames("Patient.ID")
colAnno$SF3B1 <- ifelse(colAnno$SF3B1 %in% 1, "yes","no")
plotMat <- jyluMisc::mscale(plotMat, censor = 5)
plotMat <- plotMat[,rownames(colAnno)]
annoCol <- list(SF3B1 = c(yes = "black",no = "grey80"),
IGHV.status = c(M = colList[3], U = colList[4]))
pheatmap::pheatmap(plotMat, annotation_col = colAnno, scale = "none", cluster_cols = FALSE,
clustering_method = "ward.D2",
color = colorRampPalette(c(colList[2],"white",colList[1]))(100),
breaks = seq(-5,5, length.out = 101), annotation_colors = annoCol,
show_rownames = FALSE, show_colnames = FALSE,
treeheight_row = 0)

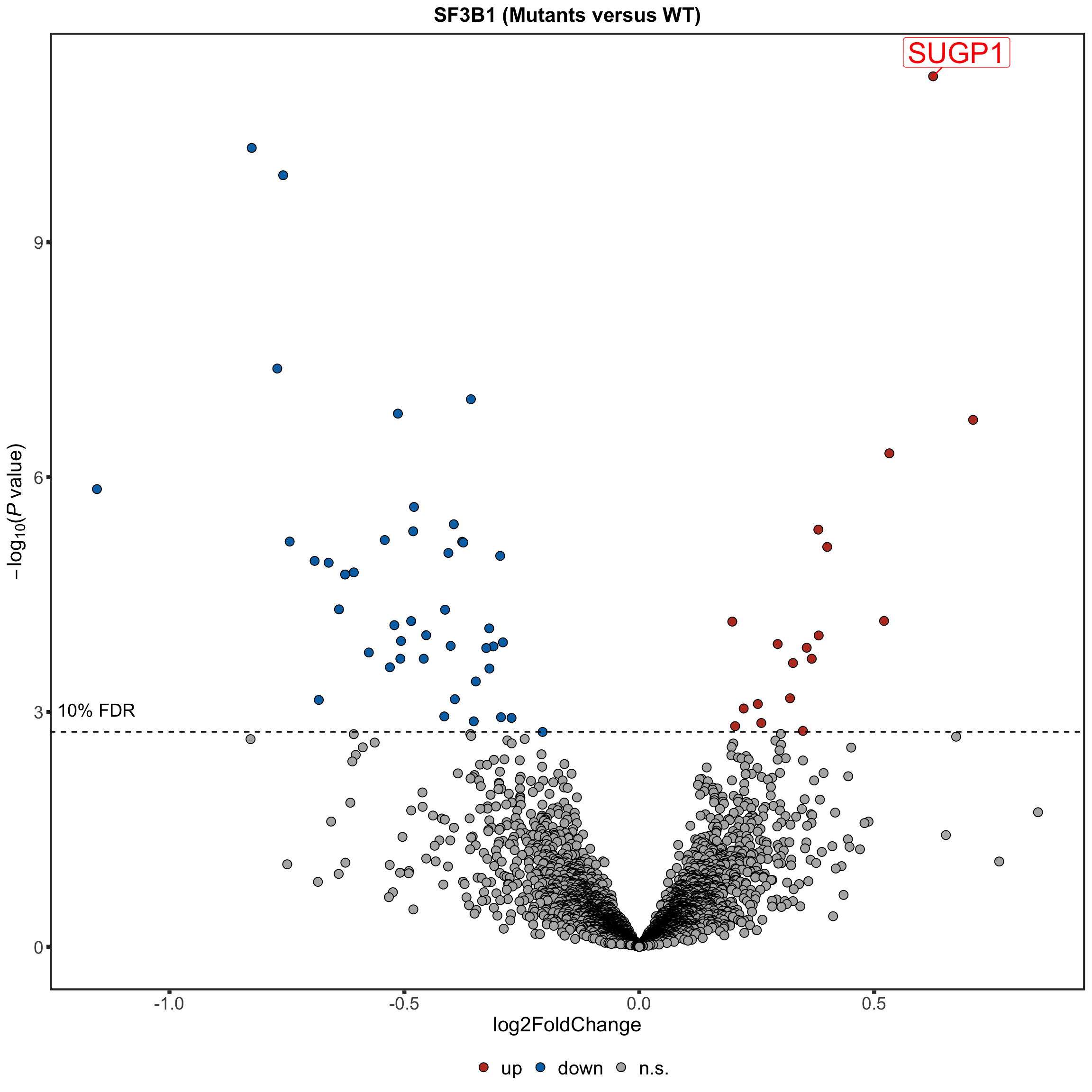

Volcano plot
plotTab <- resList
nameList <- c("SUGP1","MSH6")
sf3b1Volcano <- plotVolcano(plotTab, fdrCut =0.1, x_lab="log2FoldChange", posCol = colList[1], negCol = colList[2],
plotTitle = "SF3B1 (Mutants versus WT)", ifLabel = TRUE, labelList = nameList)
sf3b1Volcano
Enrichment analysis

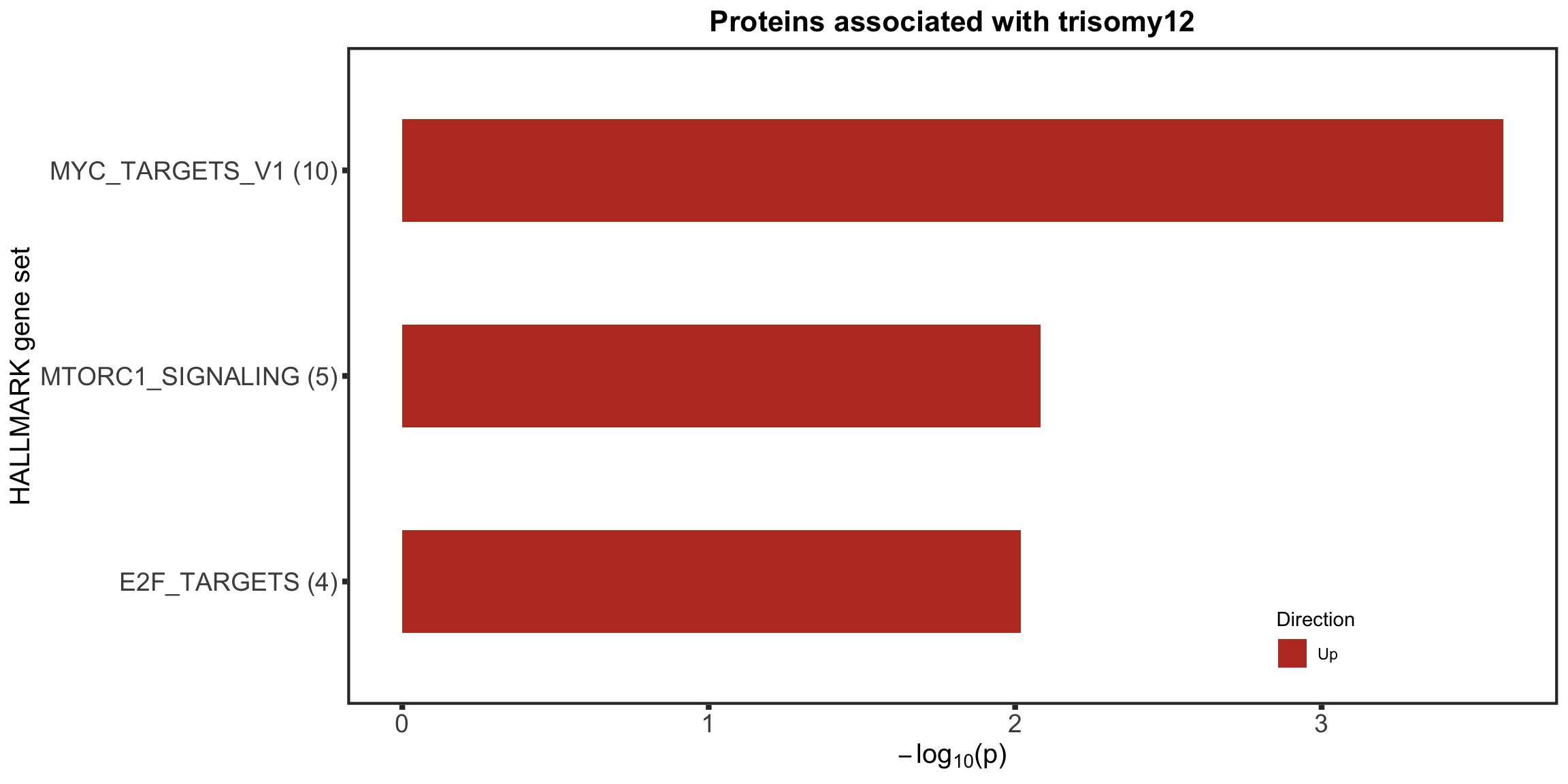

Barplot of enriched pathways
gmts = list(H= "../data/gmts/h.all.v6.2.symbols.gmt",
KEGG = "../data/gmts/c2.cp.kegg.v6.2.symbols.gmt")
inputTab <- resList %>% filter(P.Value < 0.01) %>%
mutate(name = rowData(protCLL[id,])$hgnc_symbol) %>% filter(!is.na(name)) %>%
distinct(name, .keep_all = TRUE) %>%
select(name, t) %>% data.frame() %>% column_to_rownames("name")
enRes <- list()
enRes[["Proteins associated with trisomy12"]] <- runGSEA(inputTab, gmts$H, "page")
p <- plotEnrichmentBar(enRes[[1]], pCut =0.1, ifFDR= TRUE, setName = "HALLMARK gene set",
title = names(enRes)[1], removePrefix = "HALLMARK_", insideLegend=TRUE)
tri12Enrich <- cowplot::plot_grid(p)
tri12Enrich

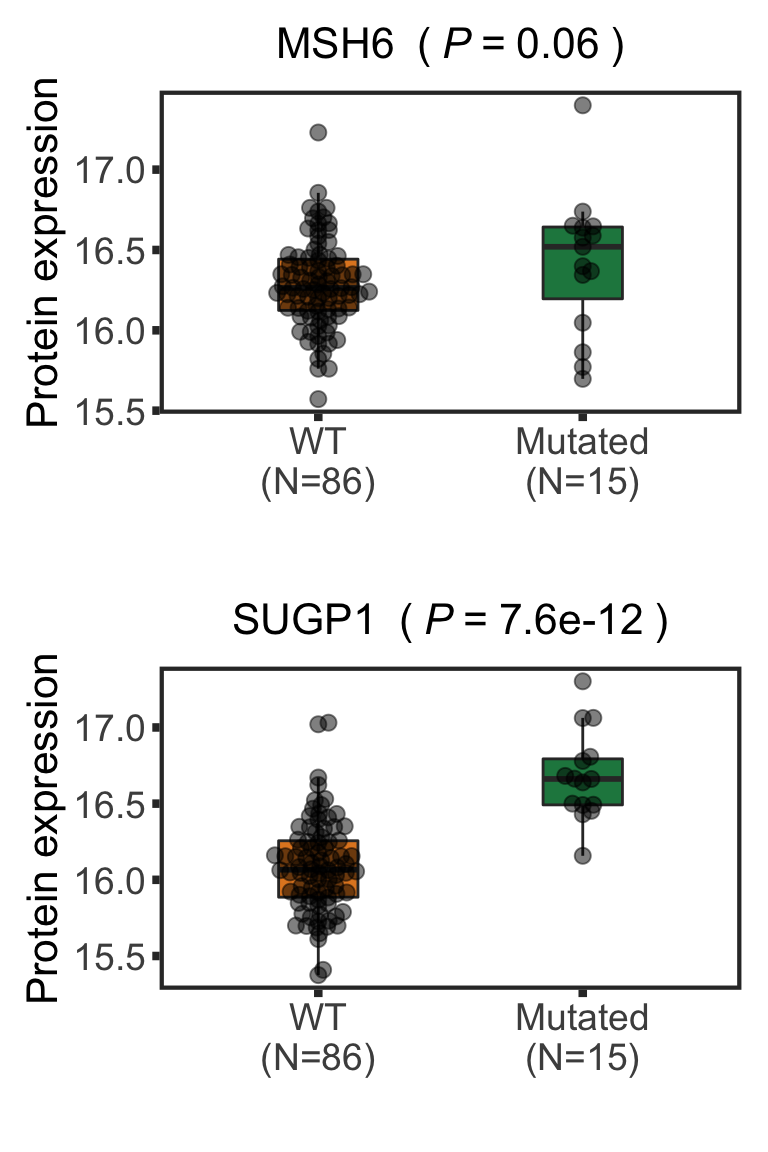

Boxplot plot of selected genes
nameList <- c("SUGP1","MSH6")
protTab <- sumToTidy(protCLL, rowID = "uniprotID", colID = "patID") %>%
mutate(count = count_combat)
plotTab <- protTab %>% filter(hgnc_symbol %in% nameList) %>%
mutate(SF3B1 = patMeta[match(patID, patMeta$Patient.ID),]$SF3B1) %>%
mutate(status = ifelse(SF3B1 %in% 1,"Mutated","WT"),
name = hgnc_symbol) %>%
mutate(status = factor(status, levels = c("WT","Mutated")))
pList <- plotBox(plotTab, pValTabel = resList, y_lab = "Protein expression")
sf3b1Box <- cowplot::plot_grid(plotlist= pList, ncol=1)
sf3b1Box
Compare with RNA sequencing data
Differentially expressed genes related to IGHV
Prepare RNA sequencing data
dds$diag <- patMeta[match(dds$PatID, patMeta$Patient.ID),]$diagnosis
dds$trisomy12 <- patMeta[match(dds$PatID, patMeta$Patient.ID),]$trisomy12
dds$IGHV <- patMeta[match(dds$PatID, patMeta$Patient.ID),]$IGHV.status
dds$SF3B1 <- patMeta[match(dds$PatID, patMeta$Patient.ID),]$SF3B1
ddsCLL <- dds[rownames(dds) %in% rowData(protCLL)$ensembl_gene_id, dds$diag %in% "CLL" & !is.na(dds$IGHV) & !is.na(dds$trisomy12) & !is.na(dds$SF3B1)]
ddsCLL.vst <- varianceStabilizingTransformation(ddsCLL)Differential expression
design(ddsCLL) <- ~ trisomy12 + IGHV + SF3B1
deRes <- DESeq(ddsCLL)
resTab <- results(deRes, contrast = c("SF3B1",1,0), tidy = TRUE) %>%
mutate(name = rowData(ddsCLL[row,])$symbol) %>%

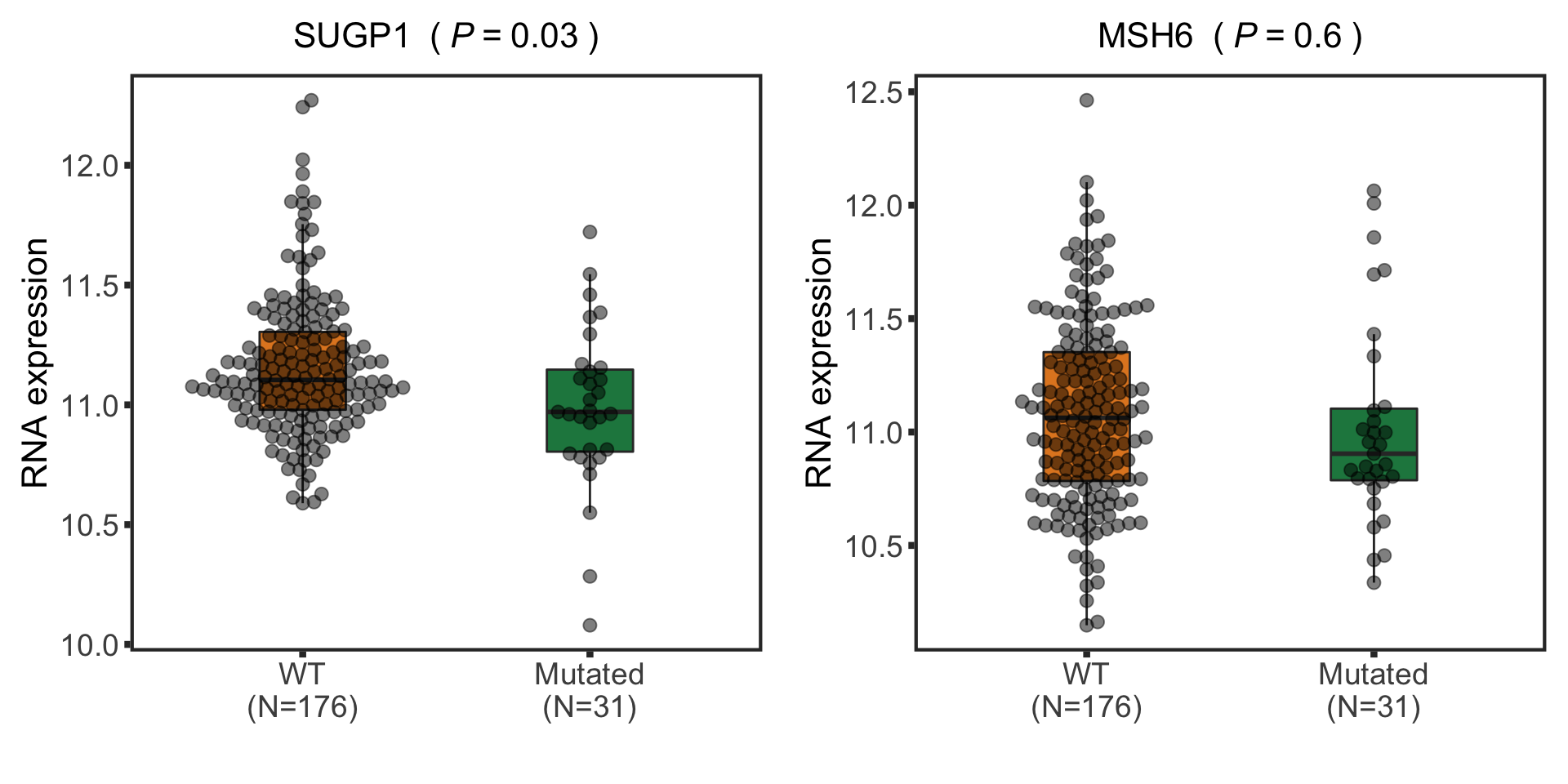

dplyr::rename(P.Value = pvalue)Boxplot of selected genes
plotTab <- assay(ddsCLL.vst[match(nameList, rowData(ddsCLL.vst)$symbol),]) %>%
data.frame() %>% rownames_to_column("id") %>%
mutate(name = rowData(ddsCLL.vst[id,])$symbol) %>%
gather(key = "patID", value = "count", -id, -name) %>%
mutate(SF3B1 = patMeta[match(patID, patMeta$Patient.ID),]$SF3B1) %>%
mutate(status = ifelse(SF3B1 %in% 1,"Mutated","WT"))%>%
mutate(status = factor(status, levels = c("WT","Mutated")))
pList <- plotBox(plotTab, pValTabel = resTab, y_lab = "RNA expression")
cowplot::plot_grid(plotlist= pList, ncol=2)

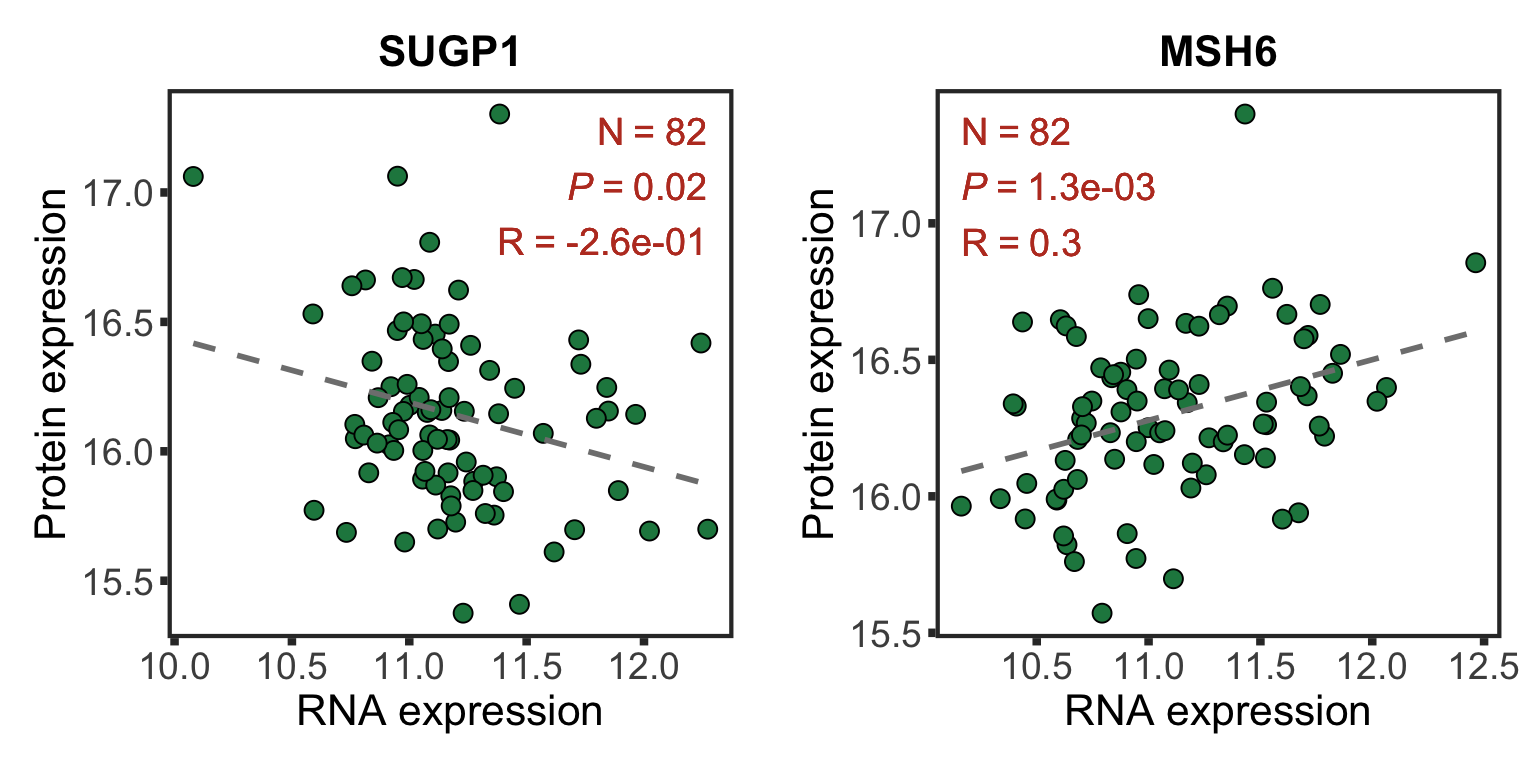

Correlations between RNA and protein expression
rnaMat <- assay(ddsCLL.vst)
protMat <- assays(protCLL)[["count_combat"]]
rownames(protMat) <- rowData(protCLL)$ensembl_gene_id
overSample <- intersect(colnames(rnaMat), colnames(protMat))
rnaMat <- rnaMat[,overSample]
protMat <- protMat[,overSample]
plotList <- lapply(nameList, function(n) {
geneId <- rownames(ddsCLL.vst)[match(n, rowData(ddsCLL.vst)$symbol)]
stopifnot(length(geneId) ==1)
plotTab <- tibble(x=rnaMat[geneId,],y=protMat[geneId,])
coef <- cor(plotTab$x, plotTab$y, use="pairwise.complete")
annoPos <- ifelse (coef > 0, "left","right")
plotCorScatter(plotTab, "x","y", showR2 = FALSE, annoPos = annoPos, x_lab = "RNA expression",
y_lab ="Protein expression", title = n,dotCol = colList[4], textCol = colList[1])
})
cowplot::plot_grid(plotlist = plotList, ncol =2)
Differential splicing
Processing splicing dataset
library(DEXSeq)
dxdCLL <- dxdCLL[,dxdCLL$diag %in% "CLL"]
dxdCLL$SF3B1 <- factor(patMeta[match(dxdCLL$patID, patMeta$Patient.ID),]$SF3B1)
dxdCLL$trisomy12 <- factor(patMeta[match(dxdCLL$patID, patMeta$Patient.ID),]$trisomy12)
dxdCLL$IGHV <- factor(patMeta[match(dxdCLL$patID, patMeta$Patient.ID),]$IGHV.status)
dxdCLL.sub <- dxdCLL[rowData(dxdCLL)$symbol %in% filter(resList, adj.P.Val < 0.1)$name,
!is.na(dxdCLL$SF3B1) & !is.na(dxdCLL$trisomy12) & !is.na(dxdCLL$IGHV)]Assemble Figure

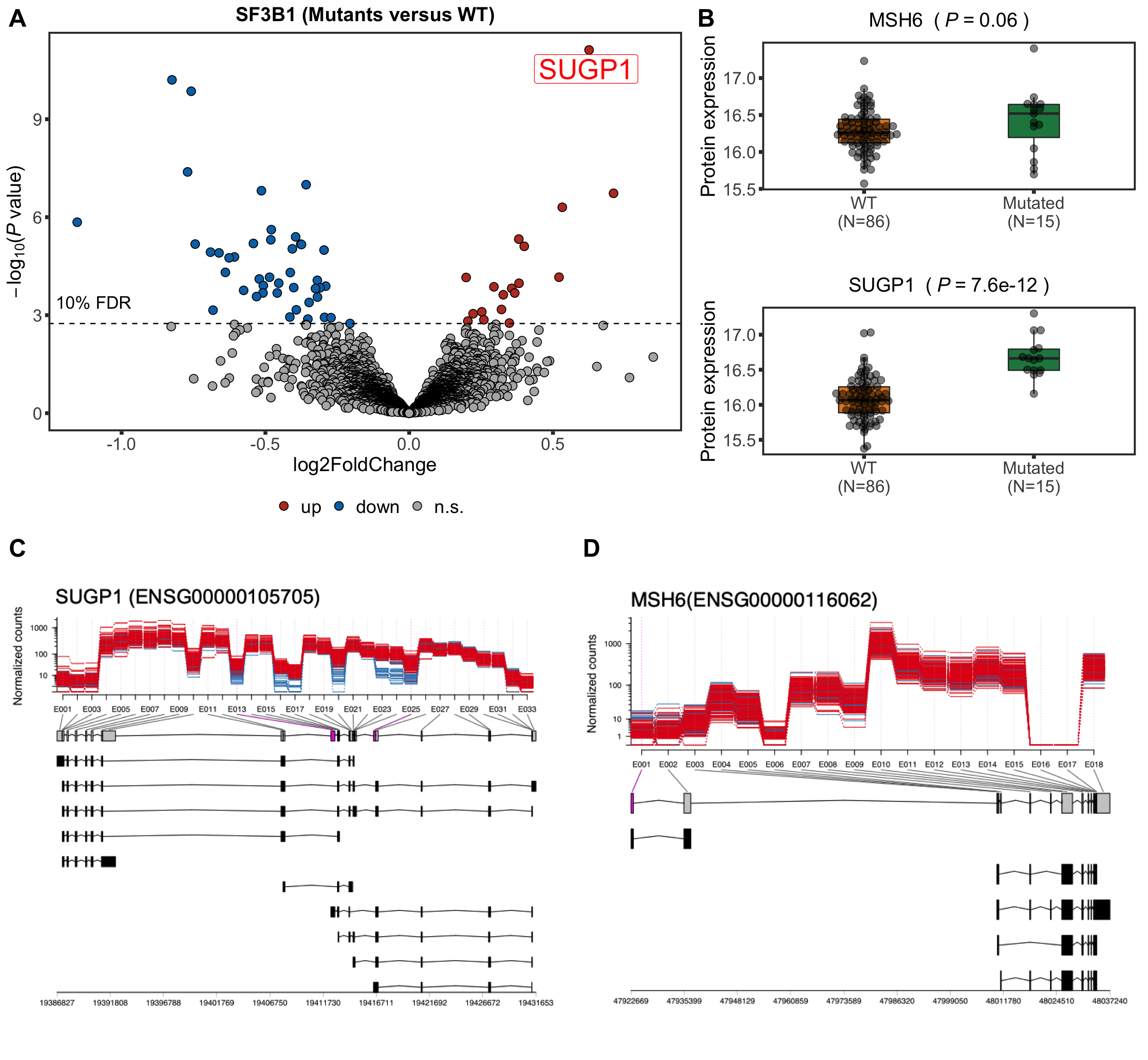

Supplementary Figure
spliceSUGP1 <- ggdraw() + draw_image("../output/SUGP1_splicing.svg")
spliceMSH6 <- ggdraw() + draw_image("../output/MSH6_splicing.svg")
upRow <- plot_grid(sf3b1Volcano, sf3b1Box, rel_widths = c(0.6,0.4),
ncol=2, labels = c("A","B"), label_size = 20)
downRow <- plot_grid(spliceSUGP1, spliceMSH6, ncol=2, labels = c("C","D"), label_size = 20)
plot_grid(upRow, downRow, ncol=1, rel_heights = c(0.5,0.5))
sessionInfo()R version 4.0.2 (2020-06-22)
Platform: x86_64-apple-darwin17.0 (64-bit)
Running under: macOS Catalina 10.15.7
Matrix products: default
BLAS: /Library/Frameworks/R.framework/Versions/4.0/Resources/lib/libRblas.dylib
LAPACK: /Library/Frameworks/R.framework/Versions/4.0/Resources/lib/libRlapack.dylib
locale:
[1] en_US.UTF-8/en_US.UTF-8/en_US.UTF-8/C/en_US.UTF-8/en_US.UTF-8
attached base packages:
[1] parallel stats4 stats graphics grDevices utils datasets
[8] methods base
other attached packages:
[1] piano_2.4.0 latex2exp_0.4.0
[3] forcats_0.5.0 stringr_1.4.0
[5] dplyr_1.0.0 purrr_0.3.4
[7] readr_1.3.1 tidyr_1.1.0
[9] tibble_3.0.2 tidyverse_1.3.0
[11] ggbeeswarm_0.6.0 ggplot2_3.3.2
[13] pheatmap_1.0.12 cowplot_1.0.0
[15] proDA_1.2.0 DESeq2_1.28.1
[17] SummarizedExperiment_1.18.1 DelayedArray_0.14.0
[19] matrixStats_0.56.0 Biobase_2.48.0
[21] GenomicRanges_1.40.0 GenomeInfoDb_1.24.2
[23] IRanges_2.22.2 S4Vectors_0.26.1
[25] BiocGenerics_0.34.0 limma_3.44.3
loaded via a namespace (and not attached):
[1] readxl_1.3.1 backports_1.1.8 fastmatch_1.1-0
[4] drc_3.0-1 jyluMisc_0.1.5 workflowr_1.6.2
[7] igraph_1.2.5 shinydashboard_0.7.1 splines_4.0.2
[10] BiocParallel_1.22.0 crosstalk_1.1.0.1 TH.data_1.0-10
[13] digest_0.6.25 htmltools_0.5.0 magick_2.4.0
[16] gdata_2.18.0 fansi_0.4.1 magrittr_1.5
[19] memoise_1.1.0 cluster_2.1.0 openxlsx_4.1.5
[22] annotate_1.66.0 modelr_0.1.8 sandwich_2.5-1
[25] colorspace_1.4-1 ggrepel_0.8.2 blob_1.2.1
[28] rvest_0.3.5 haven_2.3.1 xfun_0.15
[31] crayon_1.3.4 RCurl_1.98-1.2 jsonlite_1.7.0
[34] genefilter_1.70.0 survival_3.2-3 zoo_1.8-8
[37] glue_1.4.1 survminer_0.4.7 gtable_0.3.0
[40] zlibbioc_1.34.0 XVector_0.28.0 car_3.0-8
[43] abind_1.4-5 scales_1.1.1 mvtnorm_1.1-1
[46] relations_0.6-9 DBI_1.1.0 rstatix_0.6.0
[49] Rcpp_1.0.5 plotrix_3.7-8 xtable_1.8-4
[52] foreign_0.8-80 bit_1.1-15.2 km.ci_0.5-2
[55] DT_0.14 htmlwidgets_1.5.1 httr_1.4.1
[58] fgsea_1.14.0 gplots_3.0.4 RColorBrewer_1.1-2
[61] ellipsis_0.3.1 farver_2.0.3 pkgconfig_2.0.3
[64] XML_3.99-0.4 dbplyr_1.4.4 locfit_1.5-9.4
[67] labeling_0.3 tidyselect_1.1.0 rlang_0.4.6
[70] later_1.1.0.1 AnnotationDbi_1.50.1 visNetwork_2.0.9
[73] munsell_0.5.0 cellranger_1.1.0 tools_4.0.2
[76] cli_2.0.2 generics_0.0.2 RSQLite_2.2.0
[79] broom_0.5.6 evaluate_0.14 fastmap_1.0.1
[82] yaml_2.2.1 knitr_1.29 bit64_0.9-7
[85] fs_1.4.2 zip_2.0.4 survMisc_0.5.5
[88] caTools_1.18.0 nlme_3.1-148 mime_0.9
[91] slam_0.1-47 xml2_1.3.2 compiler_4.0.2
[94] rstudioapi_0.11 beeswarm_0.2.3 curl_4.3
[97] ggsignif_0.6.0 marray_1.66.0 reprex_0.3.0
[100] geneplotter_1.66.0 stringi_1.4.6 lattice_0.20-41
[103] Matrix_1.2-18 KMsurv_0.1-5 shinyjs_2.0.0
[106] vctrs_0.3.1 pillar_1.4.4 lifecycle_0.2.0
[109] data.table_1.12.8 bitops_1.0-6 httpuv_1.5.4
[112] R6_2.4.1 promises_1.1.1 KernSmooth_2.23-17
[115] gridExtra_2.3 rio_0.5.16 vipor_0.4.5
[118] codetools_0.2-16 MASS_7.3-51.6 gtools_3.8.2
[121] exactRankTests_0.8-31 assertthat_0.2.1 rprojroot_2.0.2
[124] withr_2.2.0 multcomp_1.4-13 GenomeInfoDbData_1.2.3
[127] mgcv_1.8-31 hms_0.5.3 grid_4.0.2
[130] rmarkdown_2.3 carData_3.0-4 ggpubr_0.4.0
[133] git2r_0.27.1 maxstat_0.7-25 sets_1.0-18
[136] shiny_1.5.0 lubridate_1.7.9
