Differential methylation analysis between RA and control samples (only consider methylation on chrY in male samples)
Junyan Lu
Last updated: 2023-09-04
Checks: 5 1
Knit directory: RA_Tcell_omics/analysis/
This reproducible R Markdown analysis was created with workflowr (version 1.7.0). The Checks tab describes the reproducibility checks that were applied when the results were created. The Past versions tab lists the development history.
Great job! The global environment was empty. Objects defined in the global environment can affect the analysis in your R Markdown file in unknown ways. For reproduciblity it’s best to always run the code in an empty environment.
The command set.seed(20221110) was run prior to running
the code in the R Markdown file. Setting a seed ensures that any results
that rely on randomness, e.g. subsampling or permutations, are
reproducible.
Great job! Recording the operating system, R version, and package versions is critical for reproducibility.
Nice! There were no cached chunks for this analysis, so you can be confident that you successfully produced the results during this run.
Great job! Using relative paths to the files within your workflowr project makes it easier to run your code on other machines.
Tracking code development and connecting the code version to the
results is critical for reproducibility. To start using Git, open the
Terminal and type git init in your project directory.
This project is not being versioned with Git. To obtain the full
reproducibility benefits of using workflowr, please see
?wflow_start.
Load libraries
Global variables
Load and preprocess datasets
Load omics data
Only keep probes on X chromose
How many samples
Control RA
3 2 Only 3 controls and 2 RA samples. The results may be unreliable
Get unique symbol
Remove CpGs not associated with known genes

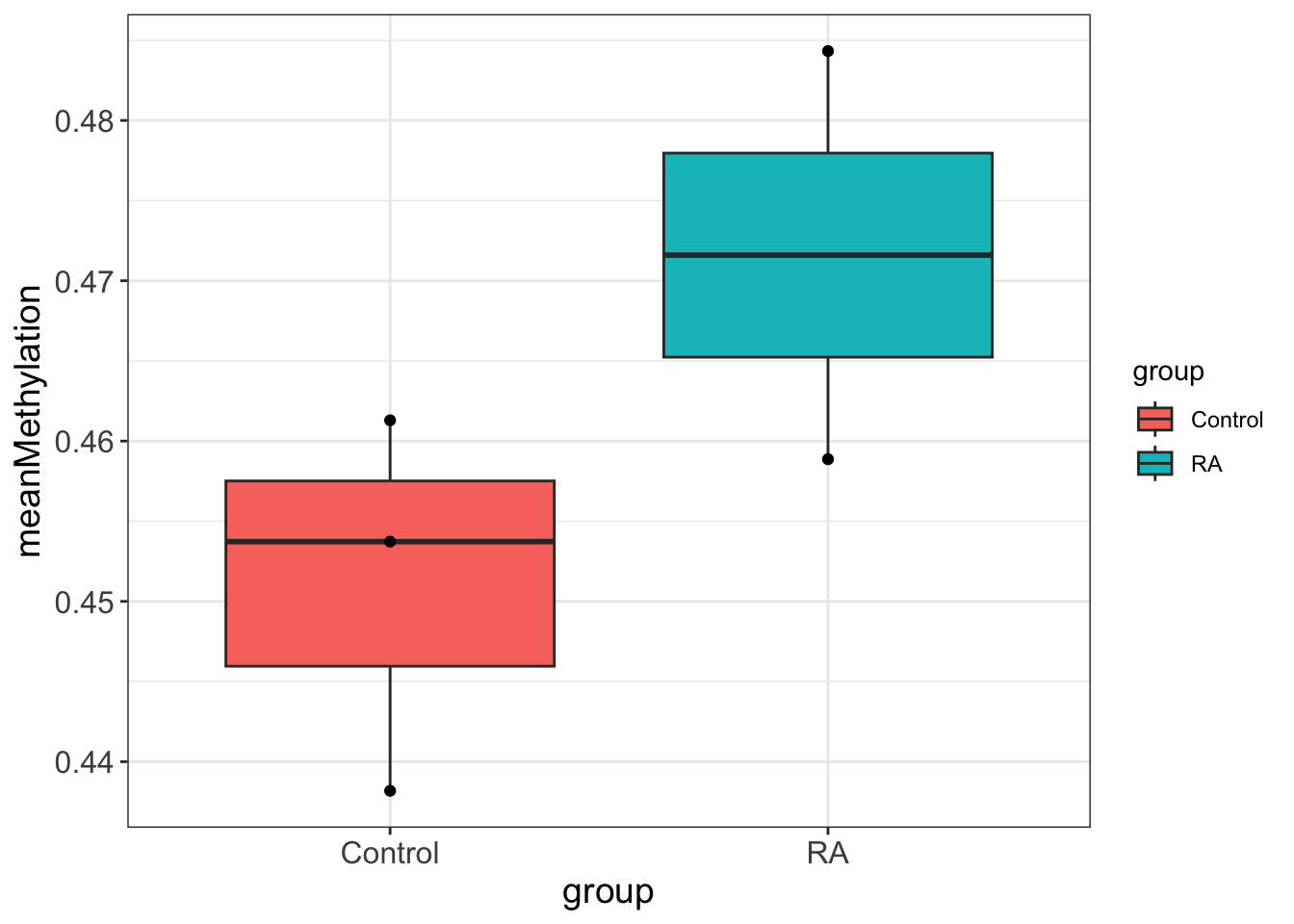

Correlation between average methylation level and phenotype
Two Sample t-test
data: meanMethylation by group
t = -1.5878, df = 3, p-value = 0.2105
alternative hypothesis: true difference in means between group Control and group RA is not equal to 0
95 percent confidence interval:
-0.06167598 0.02061802
sample estimates:
mean in group Control mean in group RA
0.4510691 0.4715981 On the overall methylation level, there’s no strong trend that RA samples have higher methylation.
PCA analysis
Calculate PCA
PCA plots

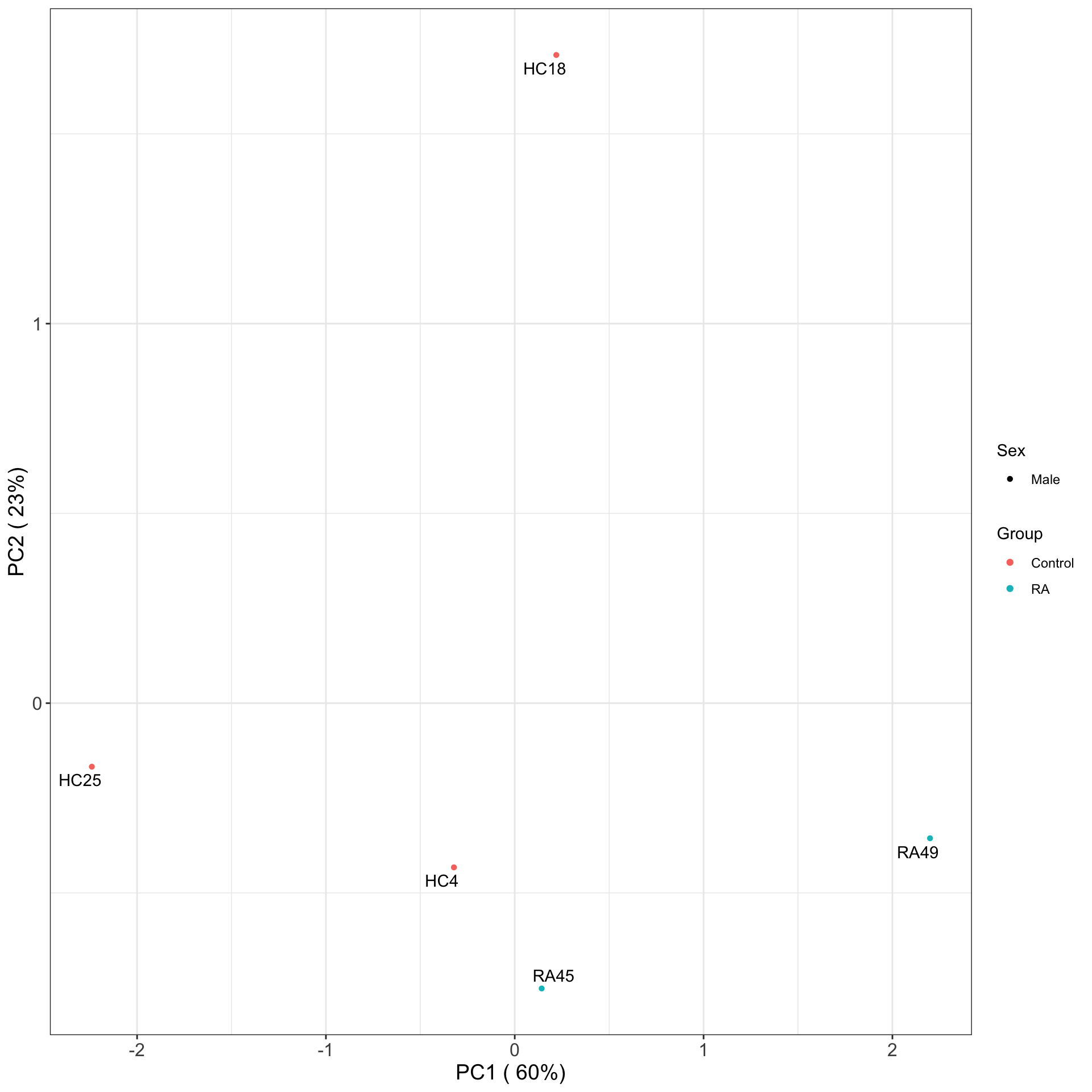

PC1 versus PC2

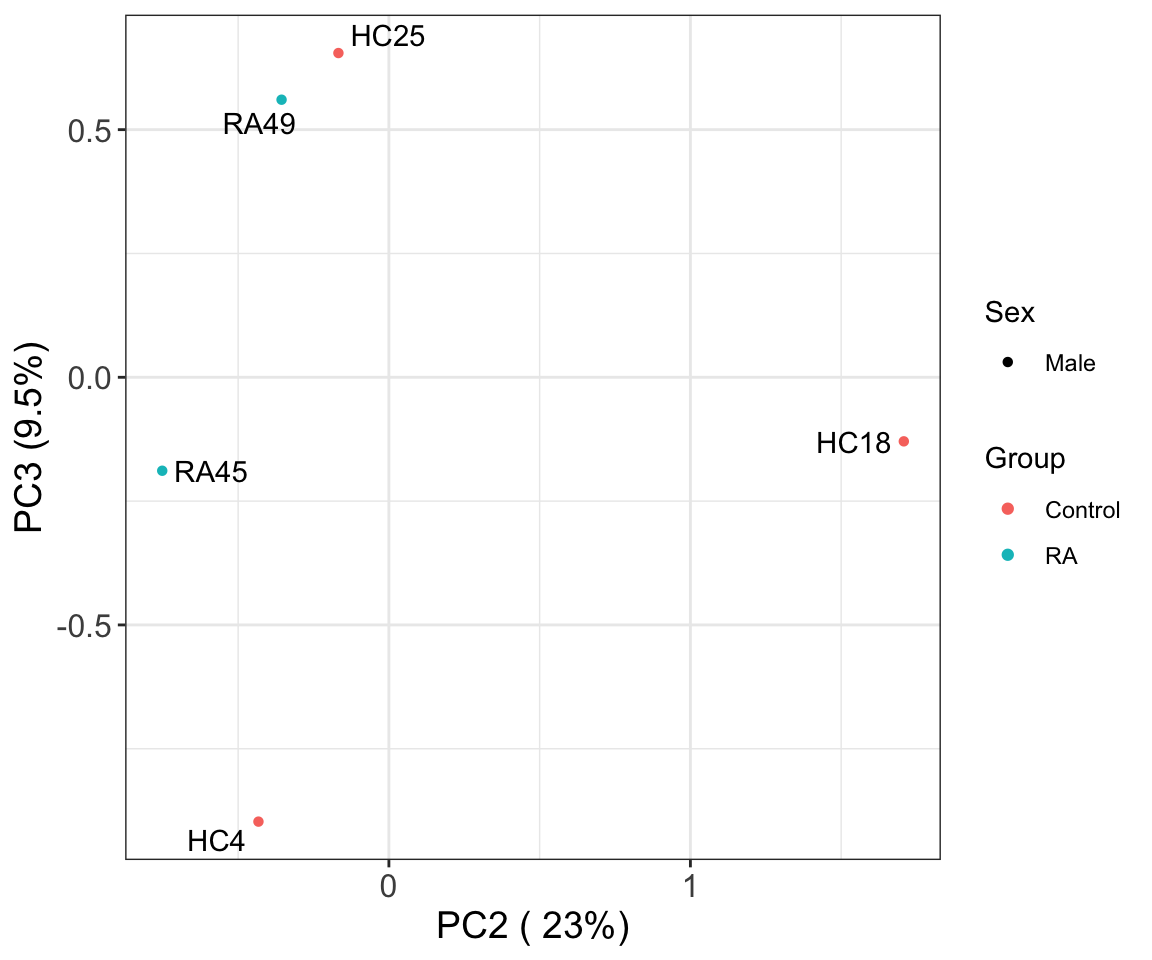

PC2 versus PC3
Associate PCs with disease
# A tibble: 5 × 3
# Groups: pc [5]
pc estimate p.value
<chr> <dbl> <dbl>
1 PC1 -1.95e+ 0 0.211
2 PC5 4.38e-17 0.217
3 PC2 9.23e- 1 0.372
4 PC4 4.77e- 1 0.444
5 PC3 -3.10e- 1 0.663The first three principal components can separate RA with control samples, to some degree.
Differentially methylated CpGs
Prepare data
Process methylation dataset
[1] 34 5Differential methylation using limma
Add mean difference of beta values
Save the full table as excel file

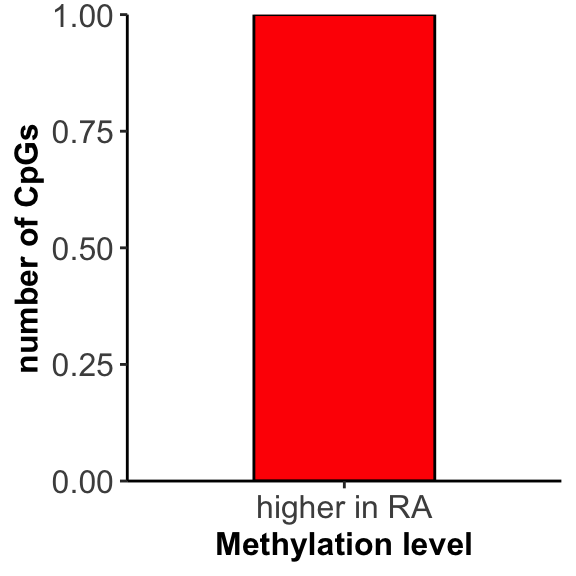

Number of hypermethylation and hypomethylation
Visualize results
associated probes
Only 1 probe

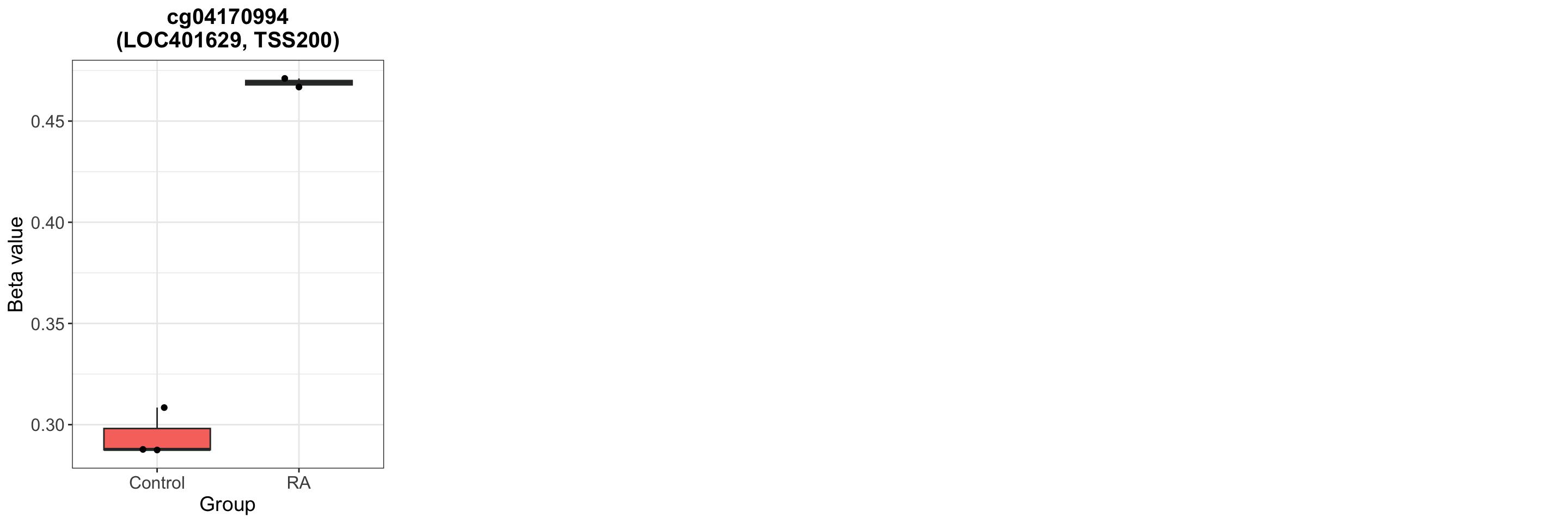

Visualize the significant associations
